JMatPro® in Action

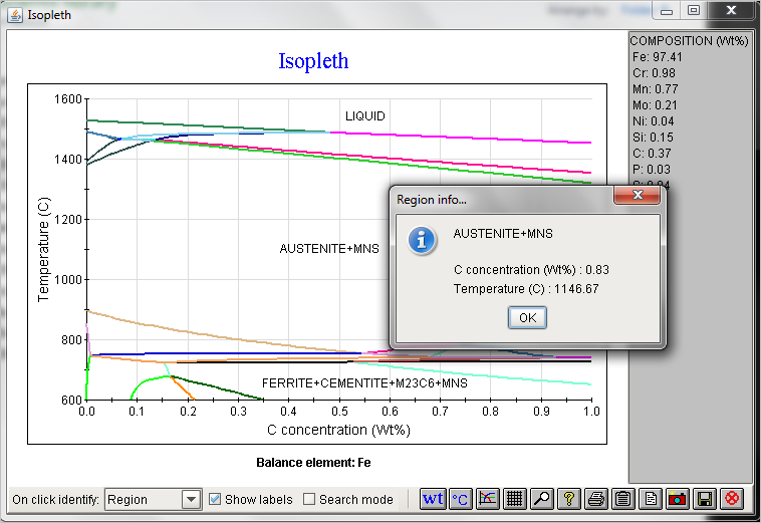

JMatPro calculates arbitrary pseudo-binary slices through the phase space. Such isopleth diagrams correspond optically to the binary phase diagrams, e.g. Iron-carbon phase diagram. However, the calculated diagrams are much more relevant to practice, as also other alloying elements are included.

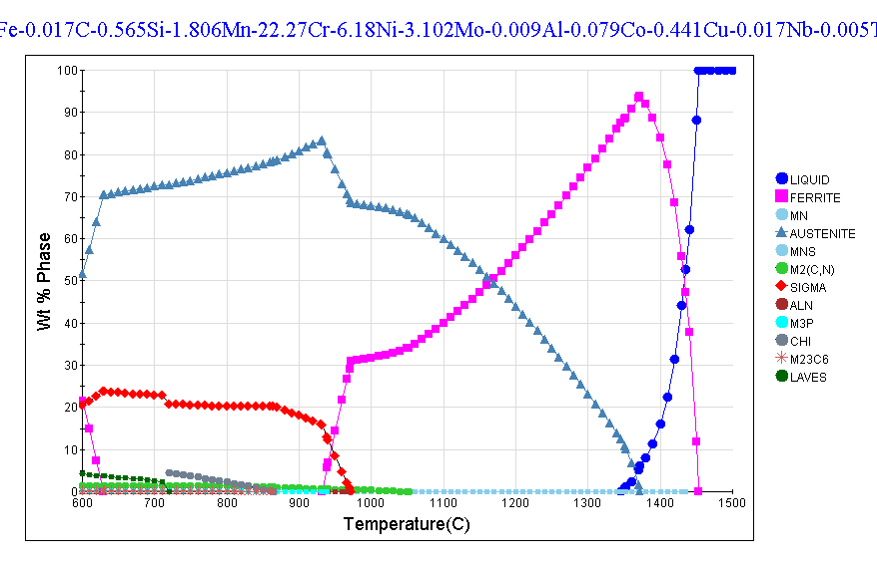

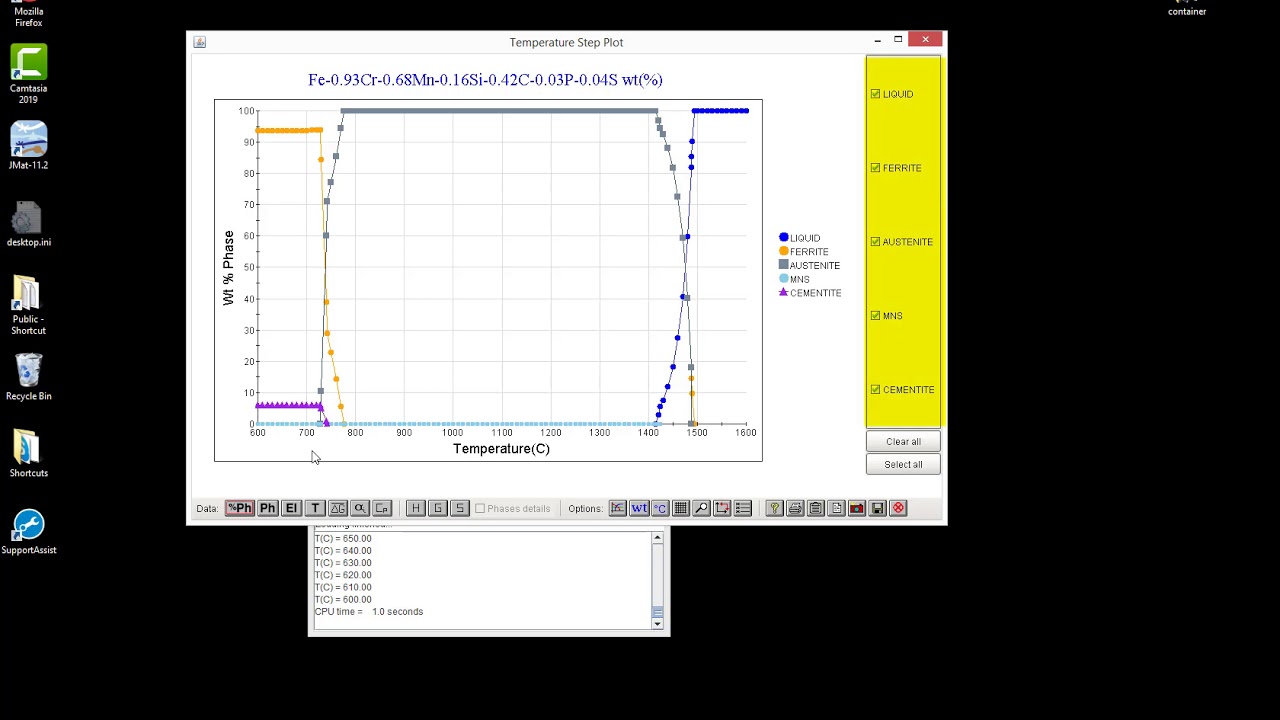

The fastest way to calculate the phase contributions, phase composition, and distribution of chemical elements in an alloy is temperature stepping. Here, starting from all known phases, the thermodynamic equilibrium is calculated as a function of the temperature. The example shows a duplex steel which has equal phase proportions of ferrite and austenite at a duplex temperature of about 1160 ° C.

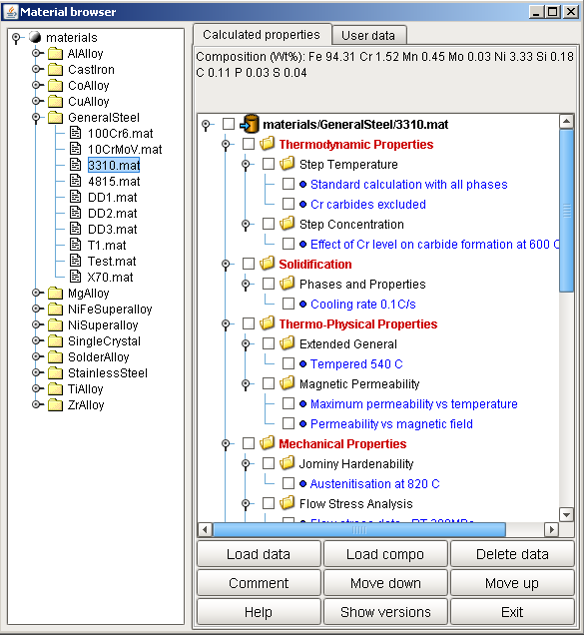

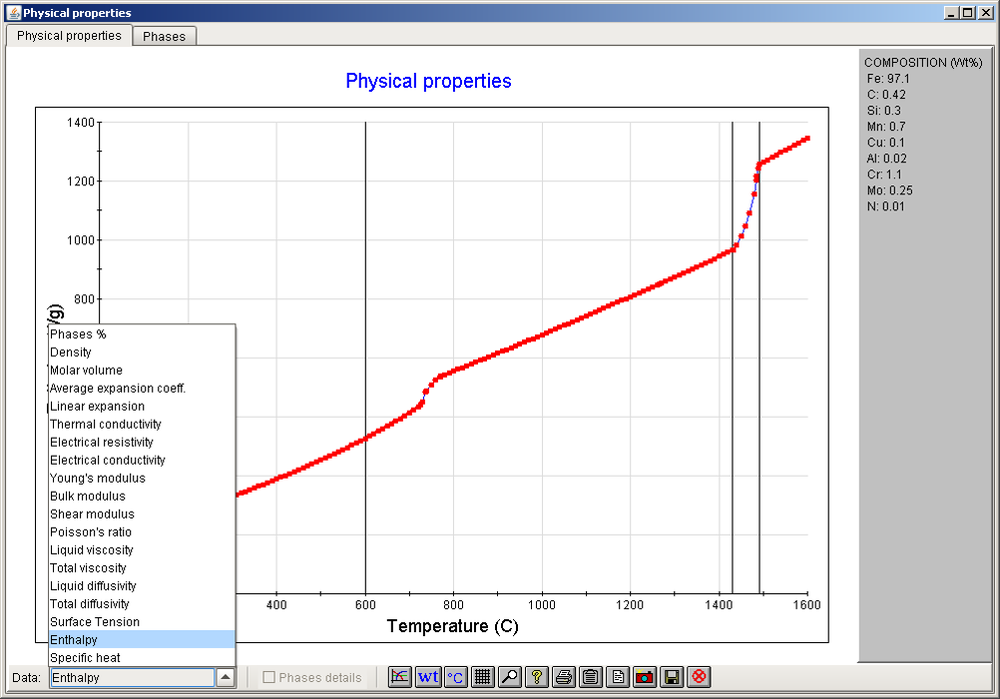

From the calculated phase fractions and their chemical composition, JMatPro calculates a whole range of properties as a function of composition and temperature. This is a basis for creating material maps for FEM calculations. Since all data is derived from a physically based model, it is also consistent and coherent.

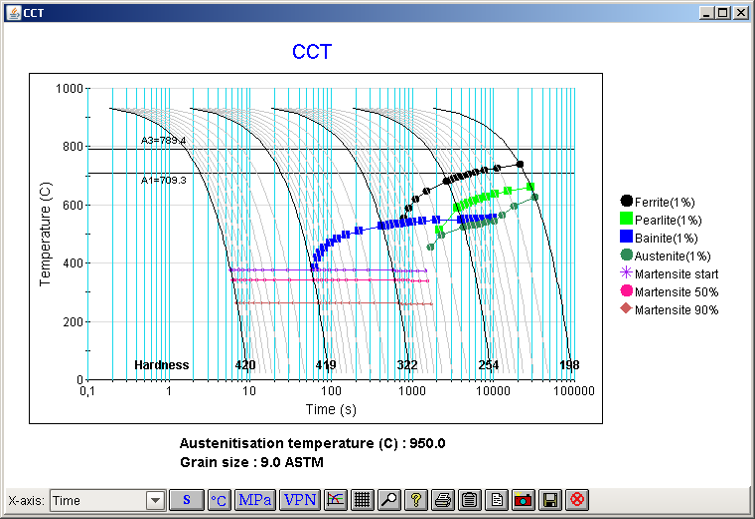

JMatPro calculates not only thermodynamic equilibria but also phase transformations – in the case of steels these are continuous and isothermal time-temperature transformation diagrams (ZTU) as well as time-temperature austenitisation diagrams (ZTA). In this way, JMatPro can also calculate the material properties as a function of the cooling and heating rate.

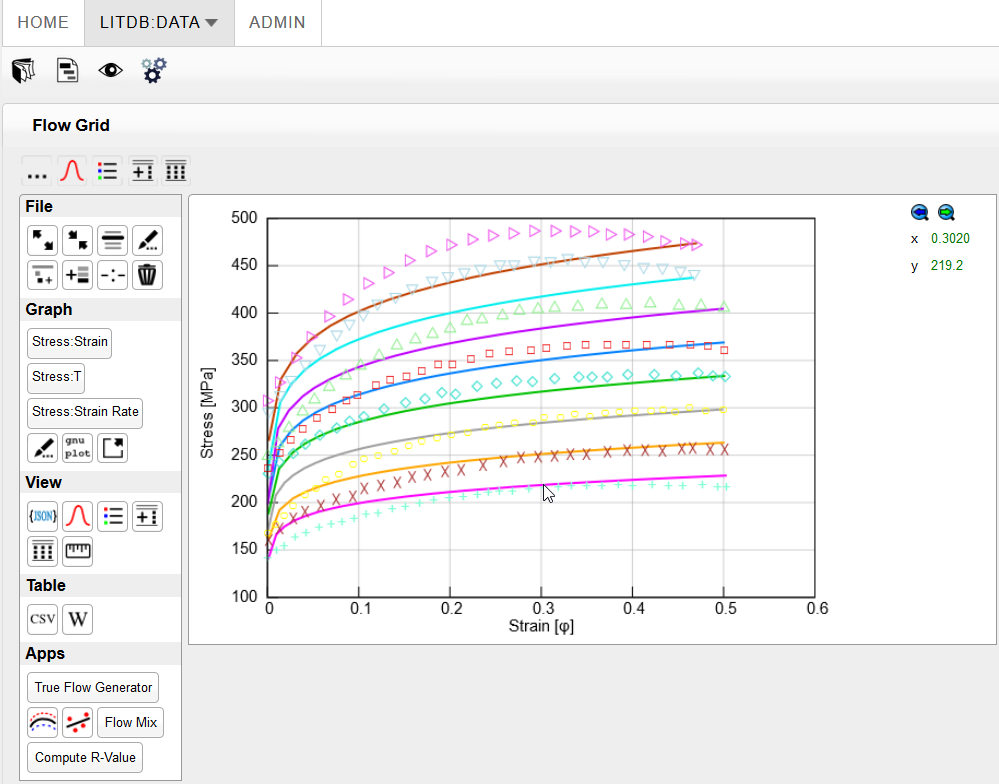

For forming simulation and heat treatment simulation, flow curves as a function of temperature and forming speed are required. JMatPro calculates these over wide temperature ranges and speeds.
